Factory Supplier Hot Dip Galvanized Round Steel Pipe For Construction
![steel pipe](http://www.royalsteelgroup.com/uploads/steel-pipe3.jpg)

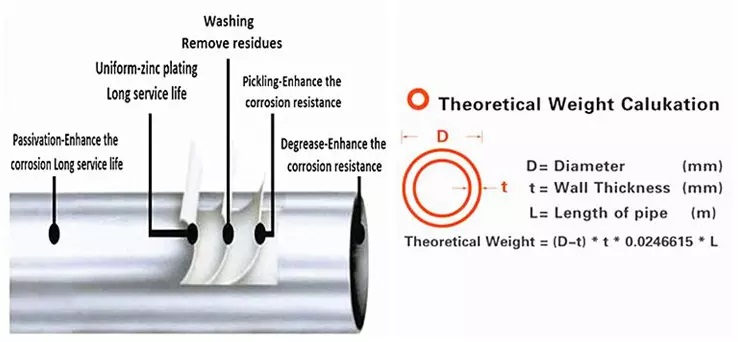

Hot dip galvanized pipe is made of molten metal and iron matrix reaction to produce alloy layer, so that the matrix and coating two combination. Hot dip galvanizing is to first pickling the steel tube. In order to remove the iron oxide on the surface of the steel tube, after pickling, it is cleaned in the tank of ammonium chloride or zinc chloride solution or mixed aqueous solution of ammonium chloride and zinc chloride, and then sent into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between the steel tube base and the molten bath to form a compact zinc-iron alloy layer with corrosion resistance. The alloy layer is integrated with the pure zinc layer and the steel tube matrix. Therefore, its corrosion resistance is strong.
![镀锌卷_12](http://www.royalsteelgroup.com/uploads/71b94cf7.jpg)
Features
1. Corrosion resistance: Galvanizing is an economic and effective rust prevention method that is often used. About half of the world's zinc output is used in this process. Not only does zinc form a dense protective layer on the steel surface, but it also has a cathodic protection effect. When the zinc coating is damaged, it can still prevent the corrosion of the iron base material by cathodic protection.
2. Good cold bending and welding performance: mainly used low carbon steel grade, the requirements have good cold bending and welding performance, as well as a certain stamping performance
3. Reflectivity: It has high reflectivity, making it a barrier against heat
4, the coating toughness is strong, galvanized layer forms a special metallurgical structure, this structure can withstand mechanical damage in transport and use.
Application
Water Supply and Plumbing: Hot Dip Galvanized Steel Pipe are widely used for water supply and plumbing systems due to their resistance to corrosion and ability to withstand high-pressure water flow.
Construction and Infrastructure: These pipes are commonly used in construction projects for structural support, scaffolding, and the installation of handrails and guardrails. They are also used in infrastructure projects such as bridges, highways, and tunnels.
Agricultural and Irrigation: Hot dip galvanized steel pipes are used in agricultural applications for irrigation systems, water distribution, and the construction of greenhouses and farm structures.
Oil and Gas Industry: These pipes are utilized in the oil and gas industry for the transportation of oil, gas, and other fluids, as well as for the construction of drilling rigs and pipelines.
Fencing and Security: The durability and corrosion resistance of hot dip galvanized steel pipes make them suitable for fencing, security barriers, and perimeter enclosures in industrial, commercial, and residential settings.
Automotive and Transportation: They are used in the manufacturing of vehicle frames, exhaust systems, and other automotive components due to their strength and resistance to corrosion.
Mechanical and Structural Engineering: Hot dip galvanized steel pipes are employed in the fabrication of mechanical components, support structures, and various engineering applications due to their strength and reliability.
![镀锌圆管_08](http://www.royalsteelgroup.com/uploads/0e5732ae1.jpg)
Parameters
oduct Name
|
Galvanized Steel Round Pipe(Hot Dipped or Pre Galvanized)
|
Material
|
Q195 Q235 Q345
|
Wall Thickness
|
1MM~12MM as the requirement
|
Outer Diameter
|
21.3MM~219.1MM
|
Length
|
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
|
Zinc Coating
|
30g-275g
|
Technique
|
ERW(GALVANIZED)
|
Packing
|
Bundle, or with all kinds of colors PVC or as your requirements
|
Pipe Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
Surface Treatment |
1. Galvanized2. PVC,Black and color painting3. Transparent oil,anti-rust oil
4. According to clients requirement |
Product Application
|
1. Fence, greenhouse, door pipe,greenhouse2. Low pressure liquid, water, gas, oil, line pipe3. For both indoor and outdoor the building construction
4. Widely used in scaffolding construction which is much cheaper and convenient |
Origin
|
Tianjin China
|
Details
![镀锌圆管_02](http://www.royalsteelgroup.com/uploads/80e65883.jpg)
![镀锌圆管_03](http://www.royalsteelgroup.com/uploads/a4dda9bd.jpg)
![镀锌圆管_04](http://www.royalsteelgroup.com/uploads/a2f8883b1.jpg)
![镀锌圆管_05](http://www.royalsteelgroup.com/uploads/7ffcf5fd.jpg)
Zinc layers can be produced from 30gto 550g and can be supplied with hotdip galvanizing, electric galvanizingand pre-galvanizing Provides a layer of zinc productionsupport after inspection report.The thickness is produced inaccordance with the contract.Our company process the thicknesstolerance is within ±0.01mm.Zinc layers can be produced from 30gto 550g and can be supplied with hotdip galvanizing, electric galvanizingand galvanizing Provides a layer of zinc productionsupport after inspection report.The thickness is produced inaccordance with the contract.Our company process the thicknesstolerance is within ±0.01mm.Laser cutting nozzle, the nozzle issmooth and neat.Straight seam welded pipe, galvanizedsurface.Cutting length from 6-12meters ,wecan provide American standard length20ft 40ft.Or we can open mold to customizeproduct length,such as 13 meter ect.50.000m warehouse.It produces morethan 5,000 tons ofgoods per day.so we can providethem with fastestshipping time andcompetitive price.
![镀锌圆管_06](http://www.royalsteelgroup.com/uploads/700acbbe1.jpg)
![镀锌圆管_07](http://www.royalsteelgroup.com/uploads/819a8c411.jpg)
Galvanized pipe is a common building material and is used in a wide range. In the process of shipping, due to the influence of environmental factors, it is easy to cause problems such as rust, deformation or damage to the steel pipe, so it is very important for the packaging and transportation of galvanized pipes. This paper will introduce the packaging method of galvanized pipe in the process of shipping.
2. Packaging requirements
1. The surface of the steel pipe should be clean and dry, and there should be no grease, dust and other debris.
2. The steel pipe must be packed with double-layer plastic coated paper, the outer layer is covered with a plastic sheet with a thickness of not less than 0.5mm, and the inner layer is covered with a transparent polyethylene plastic film with a thickness of not less than 0.02mm.
3. The steel pipe must be marked after packaging, and the marking should include the type, specification, batch number and production date of the steel pipe.
4. The steel pipe should be classified and packaged according to different categories such as specification, size and length to facilitate loading and unloading and warehousing.
Third, packaging method
1. Before packaging the galvanized pipe, the surface of the pipe should be cleaned and treated to ensure that the surface is clean and dry, so as to avoid problems such as corrosion of the steel pipe during shipping.
2. When packaging galvanized pipes, attention should be paid to the protection of steel pipes, and the use of red cork splints to strengthen both ends of the steel pipes to prevent deformation and damage during packaging and transportation.
3. The packaging material of galvanized pipe must have the effect of moisture-proof, water-proof and rust-proof to ensure that the steel pipe is not affected by moisture or rust during the shipping process.
4. After the galvanized pipe is packed, pay attention to moisture-proof and sunscreen to avoid long-term exposure to sunlight or humid environment.
4. Precautions
1. Galvanized pipe packaging must pay attention to the standardization of size and length to avoid waste and loss caused by size mismatch.
2. After the packaging of galvanized pipe, it is necessary to mark and classify it in time to facilitate management and warehousing.
3, galvanized pipe packaging, should pay attention to the height and stability of the goods stacking, to avoid the tilt of the goods or stacking too high to cause damage to the goods.
The above is the packaging method of galvanized pipe in the shipping process, including packaging requirements, packaging methods and precautions. When packaging and transportation, it is necessary to operate in strict accordance with the regulations, and effectively protect the steel pipe to ensure the safe arrival of the goods at the destination.
![Corrugated Roofing Sheet (2)](http://www.royalsteelgroup.com/uploads/Corrugated-Roofing-Sheet-2.jpg)
1. What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact
us for further information.
2. Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. If you are looking to resell but in much smaller quantities, we recommend you check out our website
3. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4. What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 5-20 days after receiving the deposit payment. The lead times become effective when
(1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. What kinds of payment methods do you accept?
30% in advance by T/T, 70% will be before shippment basic on FOB; 30% in advance by T/T, 70% against the copy of BL basic on CIF.
